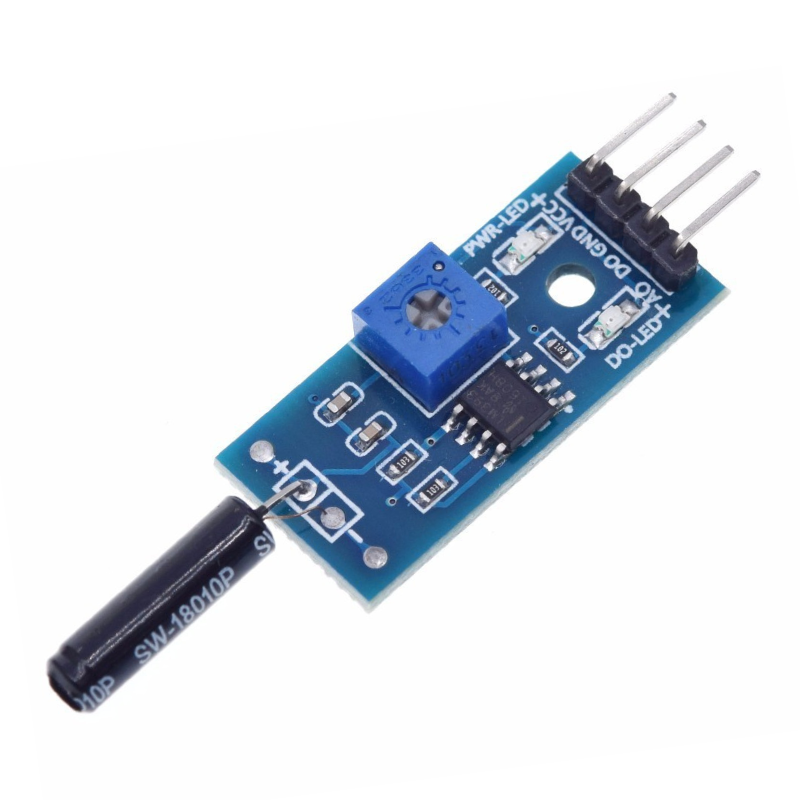

The SW-18010P Vibration Sensor Module is a compact and reliable vibration detection module that uses the highly sensitive SW-18010P spring vibration switch along with an onboard LM393 comparator to detect shocks and vibrations. When vibration exceeds the preset threshold, the module outputs a digital signal, making it easy to interface with microcontrollers.

An onboard potentiometer allows you to adjust the detection sensitivity, enabling the module to detect anything from light vibrations to stronger impacts depending on your application. Its compact size and low power consumption make it suitable for both hobby and professional projects.

The module is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC, and other microcontroller development boards.

Technical Specifications

• Model: SW-18010P
• Operating Voltage: 3.3V – 5V DC
• Operating Current: ≤15mA
• Sensor Type: Spring vibration switch
• Comparator IC: LM393
• Output Type: Digital (DO)
• Sensitivity: Adjustable via onboard potentiometer
• Interface Pins: VCC, GND, DO
• PCB Dimensions: Approximately 32 × 14 mm
• Operating Temperature: -10°C to +60°C

Applications

• Vibration detection
• Shock monitoring
• Anti-theft alarm systems
• Earthquake or seismic detection projects
• Machine vibration monitoring
• Smart home automation

Package Includes

• 1 × SW-18010P Vibration Sensor Module
