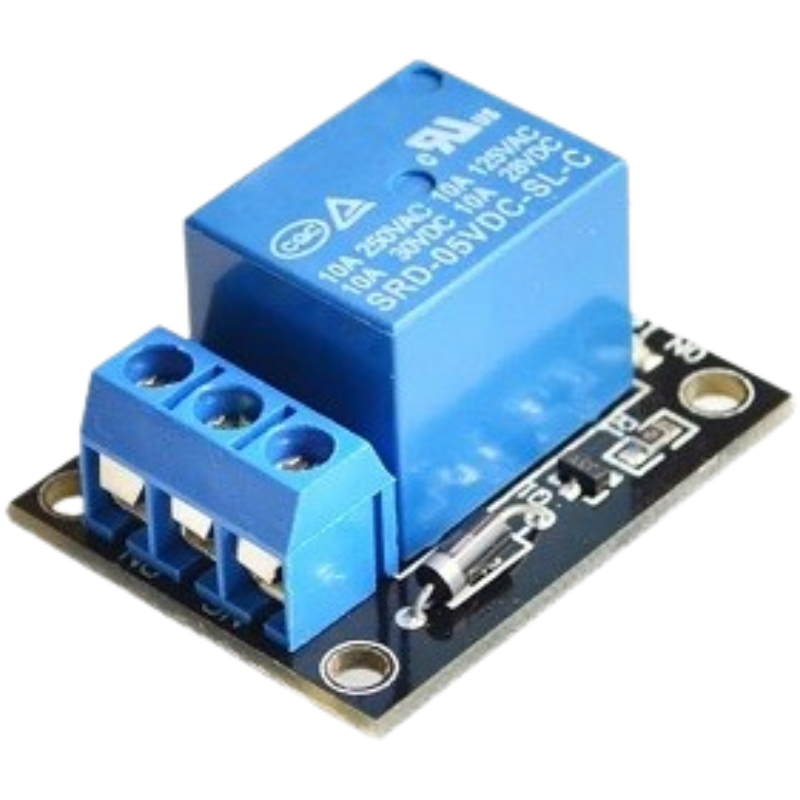

The 1 Channel 5V Relay Module is designed to enable microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and PIC controllers to switch high-voltage or high-current loads safely. Featuring a high-quality electromagnetic relay, transistor driver circuit, flyback protection diode, and LED status indicator, this module provides reliable and stable switching performance.

The relay can be used to control a wide range of electrical appliances, including lights, fans, pumps, motors, solenoid valves, and other AC or DC devices. Its opto-isolated design helps protect the control circuit from electrical noise and voltage spikes, making it suitable for both hobbyist and industrial applications.

With simple input and output terminals, the module is easy to connect and program, making it an excellent choice for automation and Internet of Things (IoT) projects.

Technical Specifications

• Relay Channels: 1
• Operating Voltage: 5V DC
• Trigger Voltage: 5V Logic
• Maximum Switching Voltage (AC): 250V AC
• Maximum Switching Voltage (DC): 30V DC
• Maximum Switching Current: 10A
• Control Signal: Digital Input
• Output Contacts: Normally Open (NO), Normally Closed (NC), Common (COM)
• Status Indicators: Power LED and Relay LED

Applications

• Home automation
• Industrial control
• Smart appliances
• IoT projects
• Motor control
• Arduino and Raspberry Pi projects

Package Includes

• 1 × Relay Module
